16A Wire XLR Connector 3 Pin Waterproof Ip65 Female Plug Outdoor

Name: 16A Wire XLR Connector 3 Pin Waterproof Ip65 Female Plug Outdoor
Brand: SHANGWEN
Price: 1.51 USD

Wholesale 16A Wire XLR Connector 3 Pin Waterproof Ip65 Female Plug Outdoor from china suppliers

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : 3 pin female plug

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $1.51/pieces 2-99 pieces

Type : XLR connector

Application : Power

Gender : Female

Industrial electronics : accessories

Feature : Waterproof IP65

Wire diameter range : 5-8mm

Contact Now

High Quality Outdoor Waterproof Ip65 Female Plug XLR Connector 3 Pin For Audio

Products Description

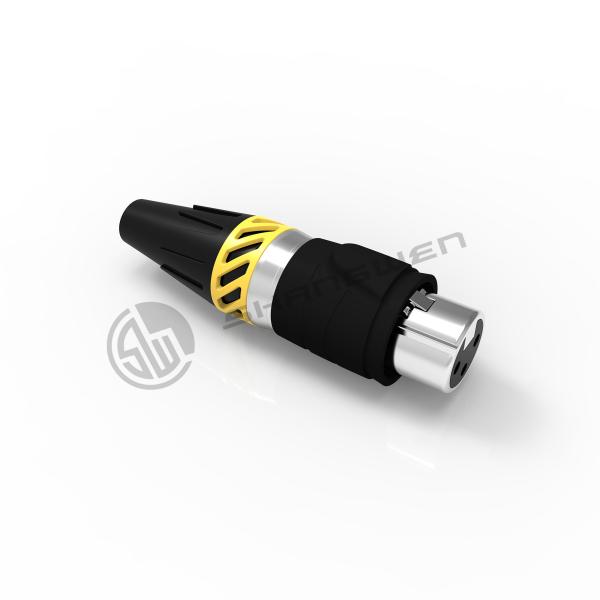

Waterproof XLR connector-3 pin female plug

16A Wire XLR Connector 3 Pin Waterproof Ip65 Female Plug Outdoor

Model:SW3XFT-F-B (Black)

SW3XFT-F(Silver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

1.Product parameters

Connection Type	XLR
Gender	Female

2.Electrical parameters

Capacitance between contacts	≤4pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 10GΩ (initial)
Rated current per contact	16A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	5-8mm
Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Wire size	Max. 2.5 mm²
Wire size	Max. 14 AWG
Locking device	Latch lock

4.Material and environmental parameters

Boot	Polyurethan
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
