19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Type : led/lighting display connector

Application : Power

Gender : MALE/FEMALE

Industrial electronics : accessories

MOQ : 5 pieces

Price : CN¥808.88-2,920.55/pieces

Contact Now

Products Description
19-Core Male Female aviation Plug Gold-Plated Copper Needle Stage Light Signal Waterproof Plug with distribution box
This 19-pin connector is designed for stable coupling and fast wiring.
Indestructible, super secure and easy to handle.Compatible with Socapex SL 419 series.Certified by the German TUV. The unit is fully IP67 waterproof when mated. Electrical safety and compliance are ensured by the internal insulation of the housing, obtained by means of a safety insulating sleeve to prevent electric shock, as well as a "first on, then off" ground contact.
The locking ring and back case are designed for easy handling. Our company's SLY 19 cores are perfectly compatible with the standard Socapex SL 419 series and are made of a machined aluminum alloy with a thick-walled structure, which is very strong and very resistant to wear with black lacquer or anodized finish.
The system ensures that the interior is actively locked down, putting an end to a long-standing industry problem.
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector

☑Related current:16A
☑Related Voltage: 300-500V
☑Insulation Resistance: ≥5.0 MΩ 500Vdc

☑Dielectric Strength: 1.5 KVdc 1min.

☑Housing Material: Zinc alloy

☑Current carrying
insulation material: PA flame retardant nylon

☑Contact Material: Gold-plated copper

☑ Temperature Rise:The cut-off terminal does
not exceed 50K
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector

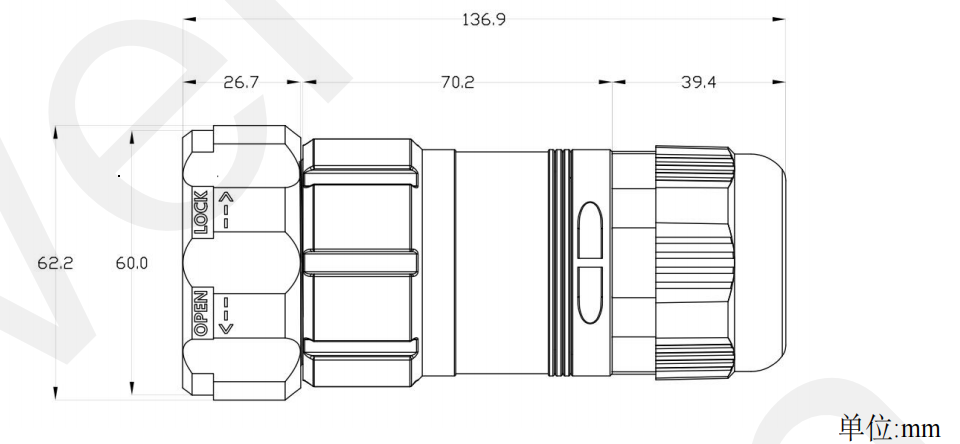

1.Size reference (unit /mm)
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
2.Specification description
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Application area
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Company Information
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Patent & Certification
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Exhibition activities
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Packaging reference
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
Payment and logistics
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
FAQ
19-Core Male Female Aviation Plug Gold-Plated Copper 20A 19 Pin Socapex Connector for Stage Lighting Waterproof Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
